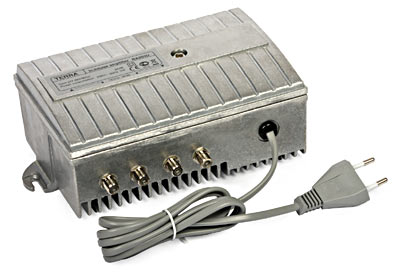

View of the amplifier

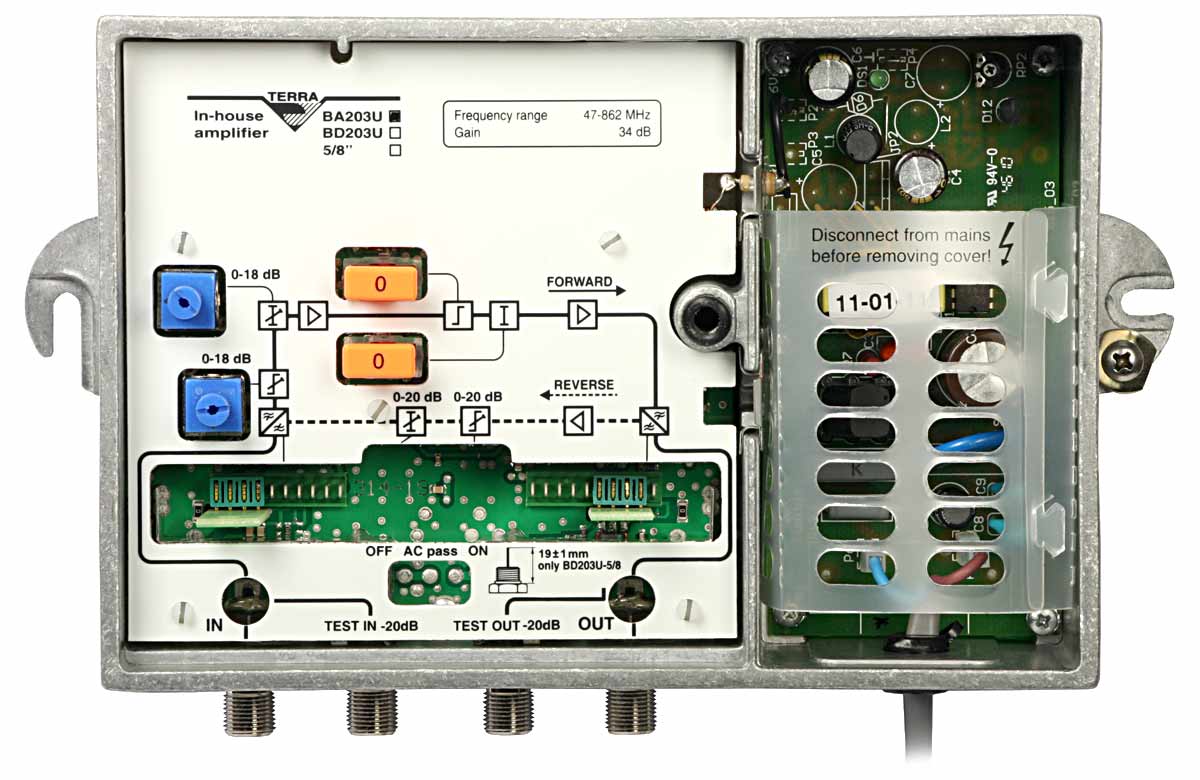

View of the inside (visible circuits of the forward and return path)

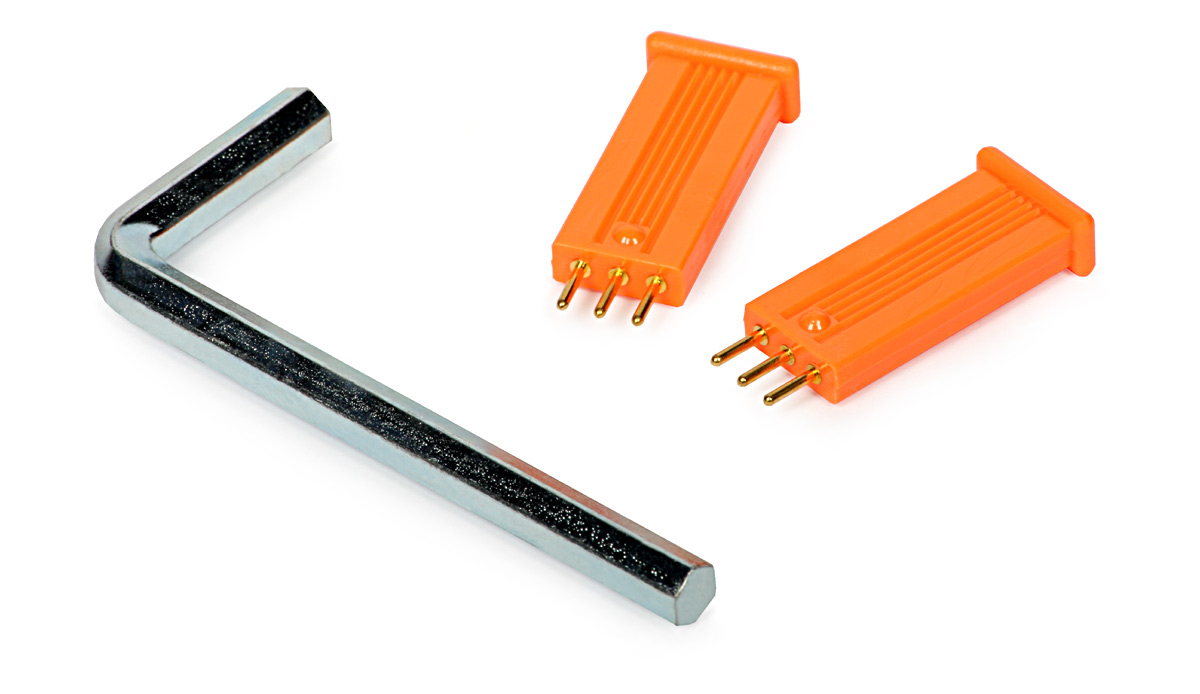

The included accessories: Allen wrench for unscrewing the cover, attenuator (4 dB) and slope (6 dB) plugins

High power building amplifier Terra BA-203U has been designed for amplifying and distributing TV signals in CATV networks with return channel. Its output stage uses GaAs push-pull technology. Modular construction allows customization for specific network requirements. The changeable plug-in return path module shaping the frequency characteristics of the return channel can use passive or active components. Appropriate plugins can also shape the frequency response of the forward path and determine the interstage attenuation.

Main features:

• push-pull output stage in GaAs technology,
• waterproof housing with high screening efficiency,
• equalizer at the input of the forward path,
• interstage equalizer between the first and second stage of the forward path,
• attenuator at the input of the forward path,
• attenuator between the first and second stage of the forward path,
• choice of active or passive return path by using the appropriate plugin,
• equalizer at the output of the return channel,
• attenuator at the output of the return channel,
• -20 dB input test point (bidirectional),
• -20 dB output test point (directional).

Similar models available to order:

JXP-x(x) plugins - interstage attenuators and equalizers

pr 02-xx plugins - active return channel

pd 02-xx plugins - passive return channel

* models available to order
(1) depending on plugin: pd 02-xx or pr 02-xx
(2) with JXP 0dB
(3) with return channel: +/- 0.7 dB
(4) with 6 dB interstage attenuator
(5) for f > 40 MHz return loss is 14 dB - 1.5 dB / octave, but not less than 10 dB

Anyone who has a problem with the selection of a suitable amplifier, plugin etc. can refer to the Terra catalog of the equipment for broadband cable networks. Each of the products listed in the catalog can be imported on request.
