DVB-S/S2 Receiver: Opticum HD X403p
Kód: A9909
Bruttó ár
Kedv.
Mennyiség
28550 Ft.
0 %

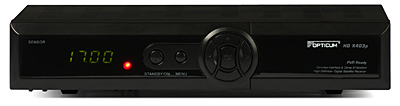

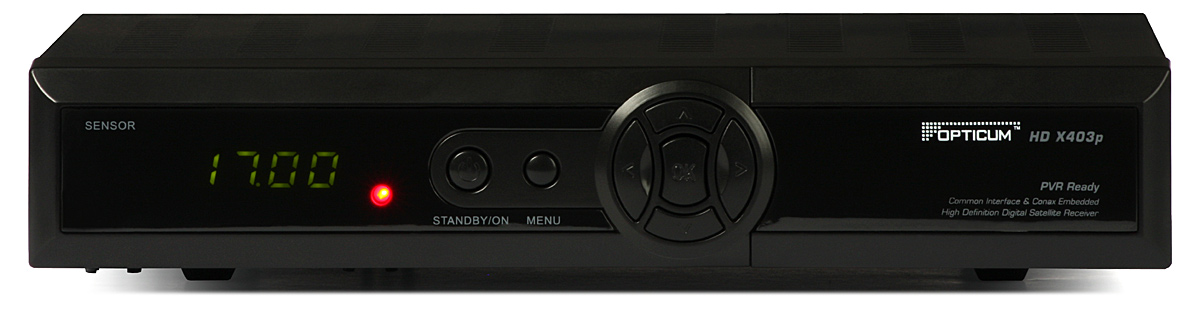

Front view

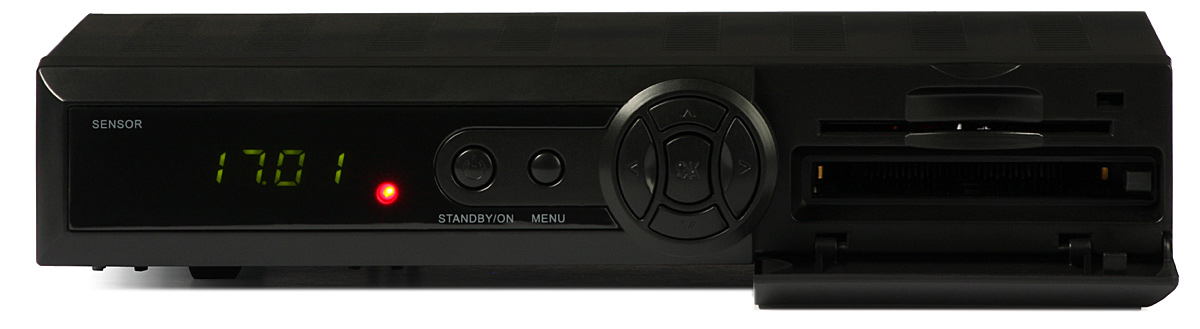

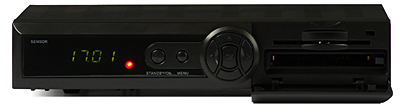

View of the smart card reader and CI slots

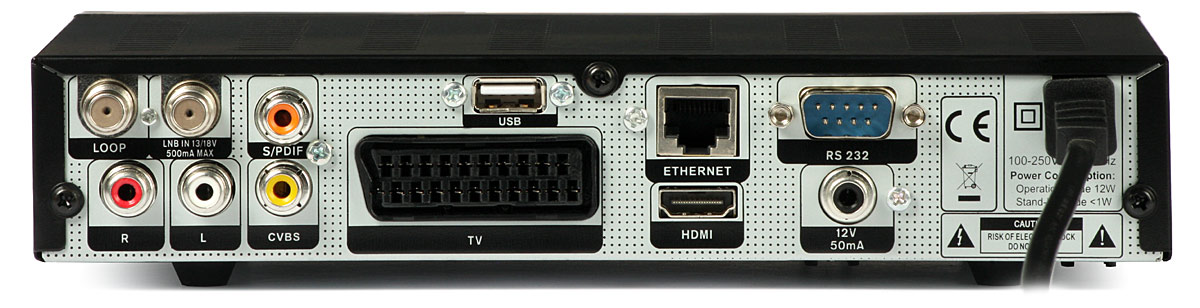

Rear view

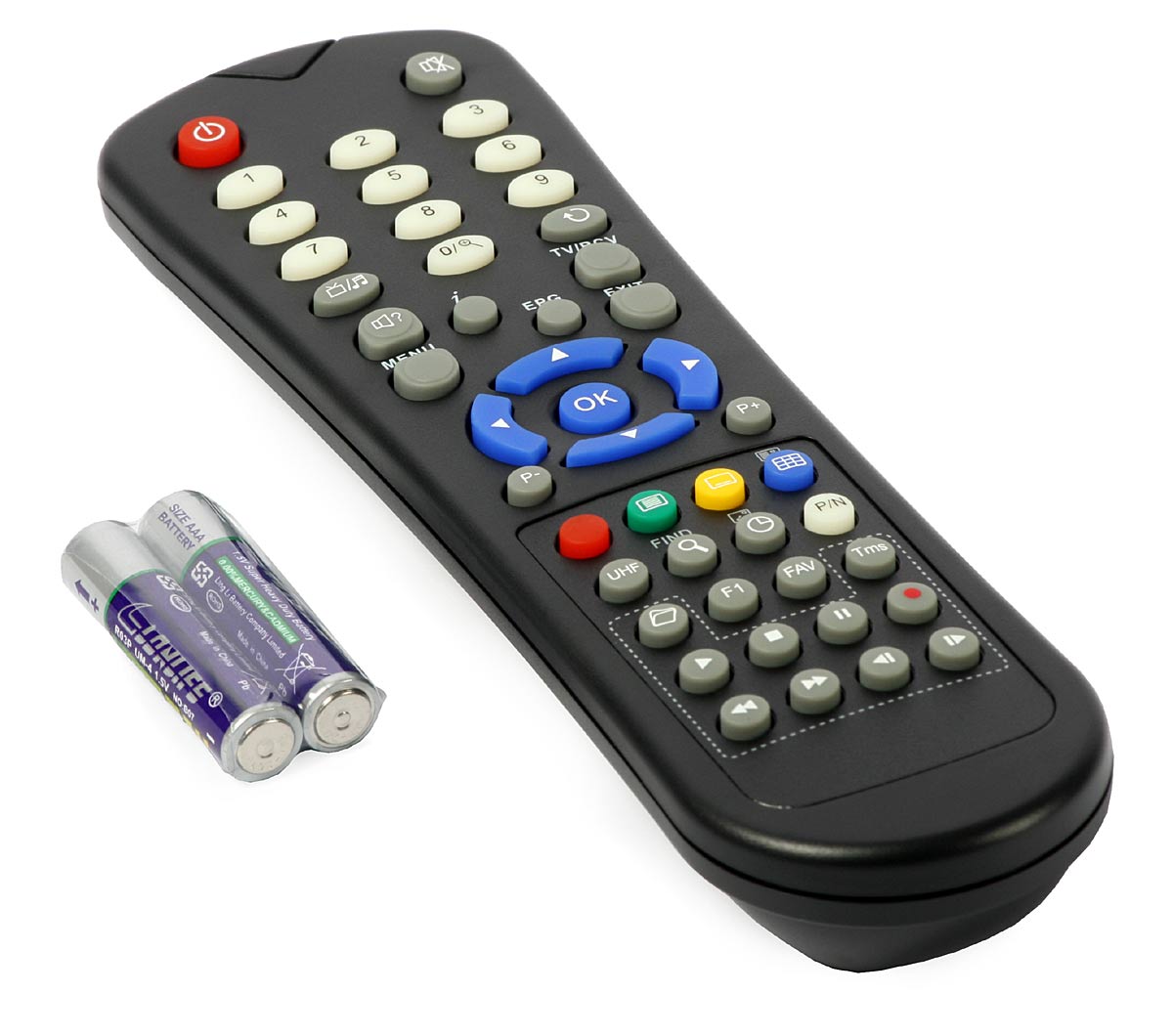

View of the remote control and included batteries
View of the packaging
The satellite receiver Opticum HD X403p A9909 supports DVB-S and DVB-S2 standards with MPEG-2 and MPEG-4 compression. The user can watch SD and HD channels, including pay-TV platforms (the receiver features embedded Conax card reader and CI slot). The PVR-ready receiver can also be connected to the network (the USB and LAN interfaces are located on the rear panel). These features make the receiver an interesting alternative to Ferguson Ariva 200 A99379.
Distinguishing features:
- Support for SD / HD (MPEG2 / MPEG4 H.264), DVB-S, DVB-S2
- Supported video resolutions: for 576p, 720p, 1080i
- 4-digit front panel display (LED)
- Firmware update via USB, RS-232C
- Low power consumption in Stand-by mode - below 1 W
- Support for DiSEqC 1.0, 1.1, 1.2, and USALS
- Electronic Program Guide - EPG
- Time Shift (pause, backward, forward)
- PVR Ready - possibility of recording to an external USB memory
- Blind Scan
- Parental Lock (channels and menu)
- Possibility to save up to 5000 channels (TV + Radio)
- Fast channel switching
- Support for subtitles (Teletext, DVB)
- Tool to convert files for playback on PCs (available in Download section)
- Built-in Dolby Digital decoder (downmix to stereo)
- Support for external FTP server (FTP client)
Connectors:
- HDMI 1.2 (with HDCP)
- LAN
- USB 2.0
- RS-232
- CVBS - RCA (Cinch) video
- 2x SCART
- 2x RCA (Cinch) - analog audio
- S/PDIF (coaxial) - digital audio output
- RF LOOP
Specifications
| Name | Opticum HD X403p |
| Code | A9909 |
| Standards | MPEG DVB-S / DVB-S2 HD |
| Input signal level | -65 dBm to -25 dBm |
| LNB power | V: +13 V...+14 V H: +18 V...+19 V |
| Max load (LNB) | 500 mA (built-in overload protection) |
| LNB tone switch | Frequency: 22±1 kHz Amplitude: 0.6±0.2 V |
| DiSEqC | 1.0, 1.1, 1.2, USALS |
| LNB IN | IEC 169-24, female |
| LNB OUT | LOOP IEC 169-24, female |
| Demodulation | QPSK, 8PSK |
| Symbol Rate | 2-45 Mbps, Convolution Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 i Auto |
| Format Video | MPEG-II Main profile/Main level |
| Format Audio | MPEG-II layer I&II, AC3 |
| Aspect ratio | 16:9, 4:3 LB, 4:3 PS |
| Audio sampling frequency | 32, 44.1, 48 kHz |
| Audio modes | Mono, Dual Mono, Stereo, Joint stereo |
| Supported video resolutions | 720x576 (PAL), 720x480 (NTSC), 1280*720, 1920*1080 (HDTV) |
| Processor | 396 MHz |
| FLASH memory | 32 MB |
| SDRAM | 1024 MB |
| RS232 | 9 pin D RS232 DCE serial port |
| SCART connector (TV) | CVBS/RGB |
| Video output signal | Composite Video (CVBS) |
| Audio outputs | L, R |
| S/PDIF | Coaxial Digital Audio |
| USB | USB 2.0 |
| HDMI | VER 1.2 Type A |
| Ethernet (option) | RJ45 |
| Supplying voltage | 100-250 VAC, 50/60 Hz |
| Power consumption (max) | 12 W |
| Operating temperature | 5...45oC |
| Storage temperature | -10...70oC |
| Storage humidity | 5% - 95% RH (no condensation) |
| Weight | <1.5 kg |
| Dimensions | 220x160x40 mm |
| Display | LED (4 digits) |
