DIPOL Singing Robot
DIPOL "Signal" singing robot is the original project of DIPOL. It has been built mostly with materials available in the DIPOL wholesale network.
How we were designing the robot in June 2011

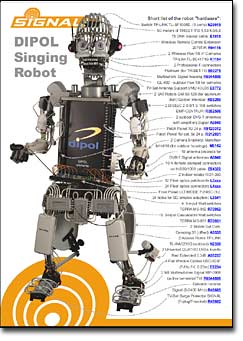

This is the DIPOL Singing Robot completed in October 2011
Here are a few technical details:
- Neck drive - GL-402 - outdoor Pan-Tilt mechanism for cameras, powered with 24 VAC. Pan speed in both directions 6o/s, tilt speed 3o/s.
- Arm drive - satellite actuators powered with 18 VDC. A micro switch in the middle of the range indicates the neutral position.
- Hand drive - indoor Pan-Tilt mechanism for cameras, powered with 24 VAC.
- Eyes - TP-LINK Pan-Tilt IP cameras, which are designed to transmit video and audio from the robot's head. The alarm output is used to trigger the robot moves from standby mode. Specific presets make the "eyes" look at the same programmed places.
- Jaw - constructed from the housing of the power supply of a Signal multiswitch, motorized by actuators from a car central locking system. The circuit is powered with +/-12 VDC. The movements have been connected with the audio input with the use of a specially developed control system. There is a speaker inside the jaw.
- Leg drive - 36 VDC actuator normally used to open/close garage doors.
- Trunk drive - 5 VDC motor with gearbox (7 rpm) with on/off control, eccentric drive of the upper part of the robot.
- Smoke generator - powered from 230 VAC power network.
- General control - hybrid solution: bionic (IP), acoustic, remote.
